█ Summary：

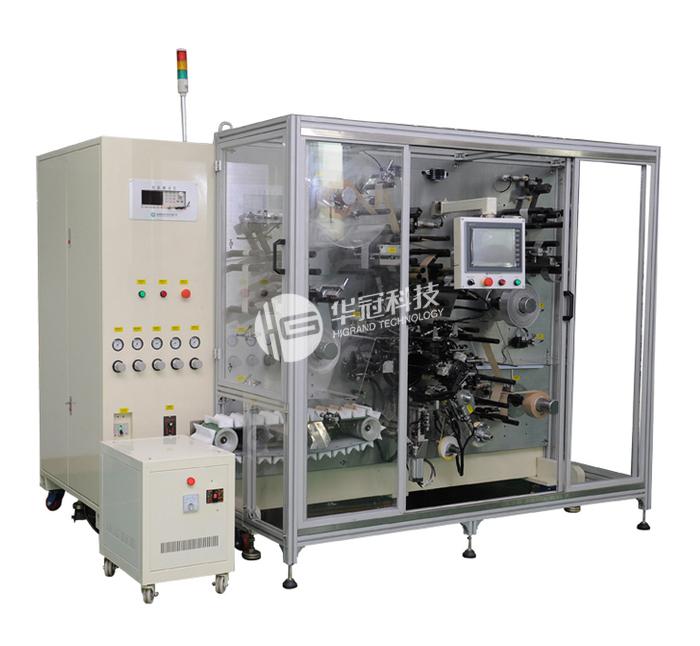

This machine is used for makingsuper capacitor. Put the electrode, separator and adhesive tape on the fixedsetting artificially. It can finish winding, tape sticking and loadingautomatically through automatic unwinding and rectify positioning, also withdetecting function.
█ Features：
l Adopt three-station windingdevice to improve productivity.
l Anode & cathode and separatorunwinding automatically.
l Adopt EPC and rectifying functionfor S-shaped electrode.
l Adopt automatic tension controllingsystem.
l With dedusting and removing ironfilings system.
l With measure diameter andweighting and chamfering functi金年会网页版on.
l Use the imported PLC controllingsystem.
l Adopt Hi-pot short circuittesting, discharging the defectives.
l Real time monitoring function, alarming automatically.
█ Technical Parameters：
No | Item | Parameter | Unit |
1 | Model | HFW-70/160-R |
|
2 | Electrode Width | 40-165 | mm |
3 | Electrode Length | 900-6000 | mm |
4 | Separator Width | 40-160 | mm |
5 | Electrode Group Diameter | Ф40-Ф65 | mm |
6 | Winding Needle Diameter | Ф6、Ф8 or Ф10 | mm |
7 | Terminated Tape Width | 10-20 | mm |
8 | Winding Precision | ±0.5 | mm |
9 | Speed | ≥12（electrode length 5000mm） | PPM |
10 | Operating Rate | ≥96% |
|
11 | Yield Rate | ≥99% |
|
12 | Weight | 2340 | kg |
13 | Dimension | 2520L×1600W×1900H | mm |
Note: The above data is for reference only. Technical happen to change without notice, which is subject to negotiation and contract agreements. |
