█ Summary:

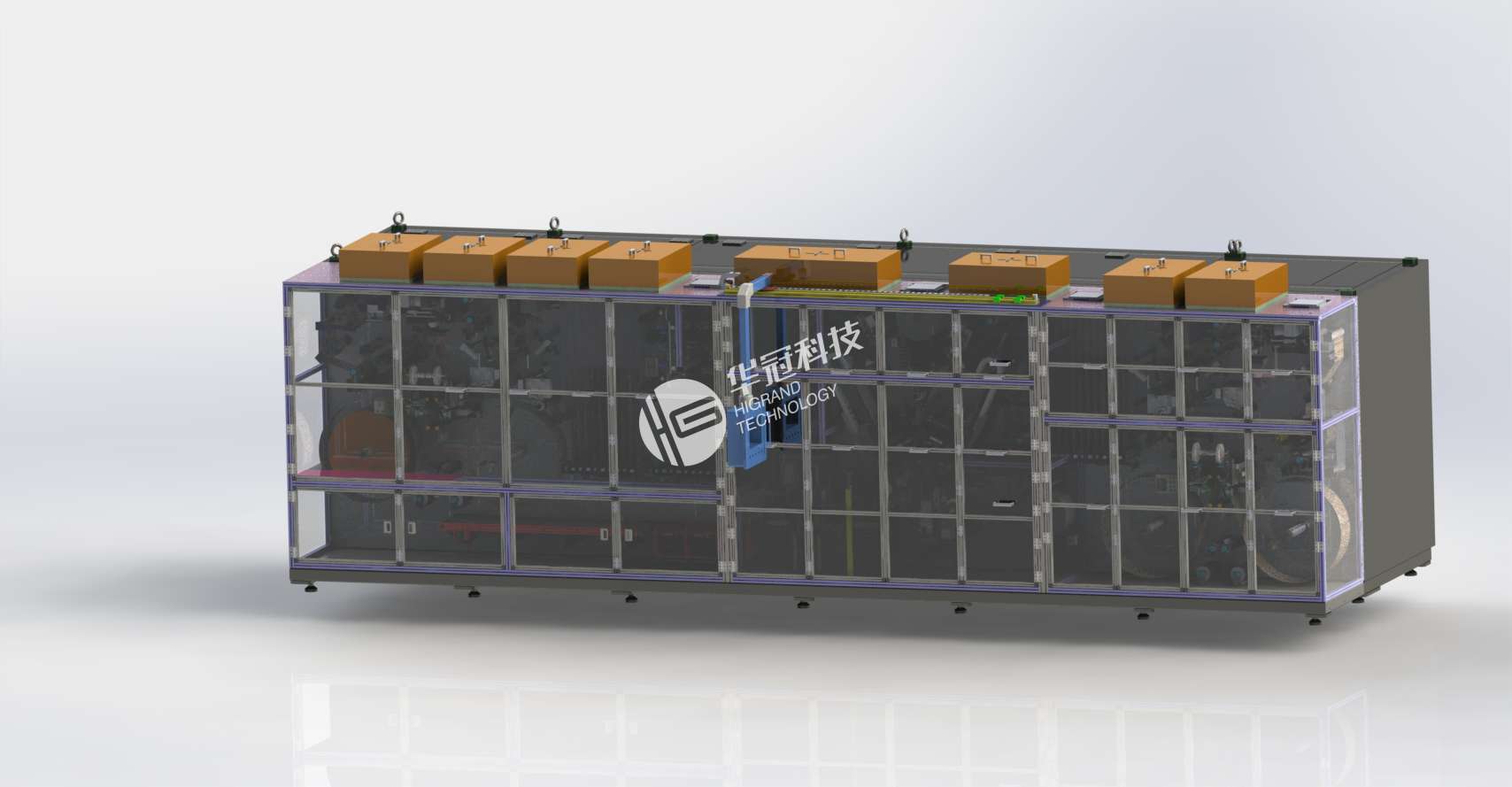

This equipment is used for making prismatic power cell or stored battery. To put the separator and welded electrode on the feeding shaft artificially. Via automatically winding, rectifying and positioning, it can finish winding, adhesive tape sticking, cold pressing, short circuit testing, loading to conveyor belt etc. It’s stable to making cells.
█ Features:
lAdopt three-station winding device to improve productivity
lAdopt servo controlling tension closed-loop system, within ±3%
lWith tab cutting function, to closed-loop control the tab cutting dimension
lWith winding needle adjusting diameter design, closed-loop control tab disposition
lWith auto change electrode and separator function
lWith removing dust, iron and static function
lWith cutting electrode and sticking protective tape function
lWith detecting and automatic eliminating defective electrode function
lCutter modular design, easy to operate and maintenance
lClamp-on to unload and transfer, no damage to cell
lThe defective cell can be classified by manipulator
lWith dust cover and FFU air cleaning system
lWith laser scan code and print code function, product quality can be traced back to MES system
█ TechnicalParameters：
No. |
Item |
Technical Parameter |
Unit |
1 |
Model | LWP-180/220-R |
|
2 |
Electrode Width | 80-220 | mm |
3 |
Electrode Length | 3000-18000 | mm |
4 |
Cell Diameter | 100-190 | mm |
| Cell Thickness | 10-35 |
|
5 |
Winding Alignment Accuracy | ±0.3 | mm |
6 |
Speed | ≧6PPM（极片长度12000mm） | PPM |
7 |
Laser Cutting Beat | 80 |
m/min |
8 |
Laser Cutting | Heat affected zone≤80um |
|
Leakage metal≤40um |
|
Burr≤15um |
|
Molten bead≤10um |
|
9 |
Operating Rate | 98% |
|
10 |
Yeild Rate | 99% |
|
11 |
Weight | 15000 | Kg |
12 |
Dimension | 9000L×2800W×2650H | mm |
